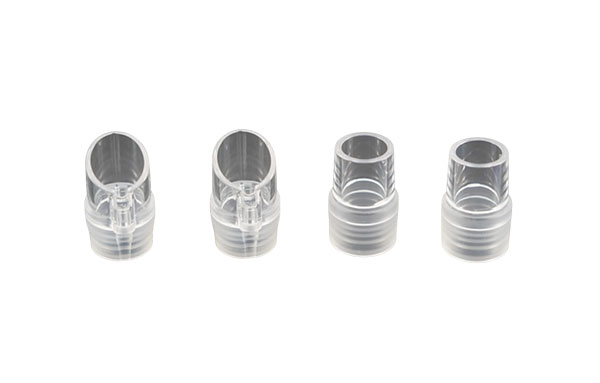

Medical Injection Molding for Catheters and Tubing Parts

2026-01-08 08:44:34

Medical Injection molding for Catheters and Tubing Parts: Precision, Materials, and Industry Trends

Industry Background and Market Demand

The global demand for minimally invasive medical procedures has driven significant growth in catheter and tubing manufacturing. These components are critical in applications such as cardiovascular interventions, urology, and drug delivery systems, where precision and biocompatibility are non-negotiable.

medical injection molding, a specialized subset of plastic manufacturing, ensures the production of high-tolerance, sterile components. The market is projected to expand further due to aging populations, increased chronic disease prevalence, and advancements in polymer science. Regulatory compliance (e.g., FDA, ISO 13485) adds complexity, making supplier expertise a key differentiator.

Core Concepts and Key Technologies

Medical injection molding for catheters and tubing involves shaping molten polymers into precise geometries using high-pressure injection into custom molds. Unlike conventional molding, medical-grade processes emphasize:

- Micro-molding: For ultra-thin walls (<0.5 mm) in neurovascular or coronary catheters.

- Multi-material molding: Combining rigid and flexible zones (e.g., catheter hubs with soft tips).

- Cleanroom production: To meet ISO Class 7/8 standards and prevent particulate contamination.

Advanced techniques like overmolding (bonding dissimilar materials) and insert molding (embedding metal components) enhance functionality while reducing assembly steps.

Product Structure, Materials, and Manufacturing Processes

Material Selection

Catheters and tubing require polymers that balance flexibility, radiopacity, and biocompatibility:

- Thermoplastic elastomers (TPE): For soft, kink-resistant sections.

- Polyurethane (PU): Offers durability and chemical resistance.

- Silicone: Biocompatible and heat-sterilizable, ideal for long-term implants.

- Fluoropolymers (e.g., PTFE): Used in high-friction reduction applications like guide catheters.

Manufacturing Workflow

1. Material drying: Prevents defects from moisture absorption.

2. Injection molding: High-precision tooling ensures dimensional accuracy (±0.005 in).

3. Post-processing: Annealing, laser trimming, or surface treatments (e.g., hydrophilic coatings).

4. Sterilization: Ethylene oxide (EtO) or gamma radiation, depending on material constraints.

Critical Factors Affecting Quality and Performance

1. Tooling precision: Micro-molds must account for polymer shrinkage (0.1–2.5%).

2. Process control: Melt temperature, injection speed, and cooling rates impact part consistency.

3. Material purity: Medical-grade resins must comply with USP Class VI or ISO 10993.

4. Regulatory compliance: Full traceability from raw material to finished product is mandatory.

Supplier Selection Criteria

Choosing a medical injection molder requires evaluating:

- Regulatory certifications (FDA, ISO 13485, MDR).

- Cleanroom capabilities and validation protocols.

- Material expertise: Experience with medical-grade polymers and adhesives.

- Design-for-manufacturability (DFM) support: To optimize part geometry and reduce costs.

Common Challenges and Industry Pain Points

- Material degradation: Some polymers (e.g., PVC) release plasticizers, limiting long-term use.

- Micro-defects: Flash, sink marks, or voids in thin-walled sections can compromise sterility.

- Cost pressures: High tooling expenses and low-volume production runs challenge ROI.

- Supply chain risks: Medical-grade resin shortages can delay production.

Applications and Use Cases

1. Cardiovascular: Balloon catheters with radiopaque markers for angioplasty.

2. Urology: Multi-lumen tubing for drainage and drug delivery.

3. Neurology: Microcatheters with tapered tips for embolization procedures.

4. Drug delivery: Implantable tubing with controlled-release properties.

Current Trends and Future Directions

- Bioresorbable polymers: Eliminate secondary removal surgeries.

- Smart catheters: Embedded sensors for real-time pressure/flow monitoring.

- Automation: AI-driven process optimization to reduce scrap rates.

- Sustainability: Recyclable or bio-based polymers without compromising performance.

FAQ: Medical Injection Molding for Catheters

Q: What tolerances are achievable in medical tubing molding?

A: High-precision molding can achieve ±0.005 in for critical dimensions, though tolerances depend on material behavior and part geometry.

Q: How does overmolding improve catheter performance?

A: It integrates rigid hubs with soft distal tips, enhancing patient comfort and reducing assembly failures.

Q: Which sterilization methods are compatible with silicone tubing?

A: Silicone tolerates EtO and autoclaving but may degrade under gamma radiation.

Q: What are the risks of using recycled resins in medical molding?

A: Recycled materials risk contamination and inconsistent properties, violating regulatory standards for implantable devices.

Q: How is radiopacity achieved in catheter materials?

A: Barium sulfate or tungsten powder is compounded into polymers to enhance X-ray visibility.

Conclusion

Medical injection molding for catheters and tubing demands a synergy of material science, precision engineering, and regulatory rigor. As minimally invasive therapies advance, manufacturers must prioritize innovation in polymers, automation, and smart design to meet evolving clinical needs. Partnering with experienced suppliers ensures compliance, scalability, and performance in this critical sector.
