Thermal management has shifted from a secondary design consideration to a primary engineering constraint across many industrial sectors. Electrification, higher power density, and tighter packaging have significantly increased localized heat generation in systems such as electric vehicles, industrial power electronics, automation equipment, and energy storage platforms. In these environments, uniform cooling strategies are often insufficient because different subsystems operate within distinct thermal windows.
To address this challenge, engineers increasingly adopt segmented cooling architectures. Rather than relying on a single coolant loop, systems are divided into multiple thermal circuits with independent flow characteristics. The 3-channel heat management pump has gained traction as a balanced solution that delivers multi-zone thermal control without the complexity or cost associated with higher-channel systems.
Demand for three-channel configurations is especially strong in applications that combine moderate system complexity with strict efficiency and reliability requirements. By enabling targeted cooling of key components, these pumps help designers achieve thermal stability while maintaining compact system layouts.
A 3-channel heat management pump is designed to circulate coolant through three discrete hydraulic paths within a single integrated assembly. Each channel serves a defined thermal load, such as a power inverter, electric motor, or battery module. Unlike traditional pumps that depend on external manifolds or valves to split flow, the channel separation is engineered directly into the pump structure.
This architecture improves flow predictability and reduces hydraulic losses. It also simplifies system integration by minimizing external tubing and fittings, which are common sources of leakage and pressure drop.
The three channels may operate with equal or differentiated flow rates depending on system requirements. Regulation can be achieved through fixed hydraulic geometry, variable-speed motor control, or integrated flow-restricting elements. In more advanced designs, temperature and pressure sensors provide feedback for closed-loop thermal control, enabling real-time adjustment to changing operating conditions.

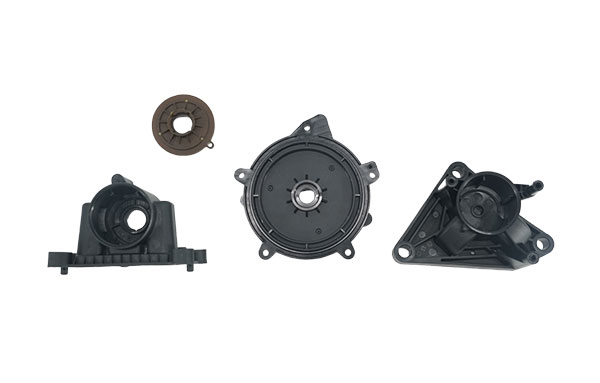

A typical 3-channel heat management pump includes:
A compact pump housing with three internal flow passages
A single impeller or multiple flow-directing stages
Three outlet ports corresponding to individual cooling circuits
Sealing interfaces to isolate channels from one another
An electric drive unit, often brushless, with control electronics
The internal layout is optimized to maintain consistent pressure delivery while preventing cross-channel interference.
Performance evaluation focuses on both system-level and channel-level metrics. Key parameters include total flow rate, per-channel flow balance, pressure capability, and energy efficiency. For many applications, maintaining stable flow distribution across all three channels is more critical than maximizing total output.
Response time to control inputs is another important consideration, particularly in systems with rapidly varying thermal loads. Noise and vibration performance are also evaluated, especially in mobile or indoor industrial environments.
Materials are selected to balance durability, thermal stability, and chemical compatibility. Common choices include:
Aluminum alloys or reinforced engineering polymers for pump housings
Stainless steel or polymer composite impellers
Elastomeric seals compatible with glycol-based or dielectric coolants
Copper or aluminum inserts where enhanced heat transfer is required
Material compatibility with long-life coolants and resistance to thermal cycling are essential for ensuring consistent performance over extended service intervals.
Manufacturing processes emphasize dimensional accuracy and cleanliness. Injection molding is often used for complex housing geometries, while precision machining is applied to bearing seats and sealing surfaces. Assembly is typically conducted in controlled environments to reduce contamination risks.
End-of-line testing commonly includes pressure verification, flow measurement for each channel, electrical performance checks, and leak testing to confirm channel isolation.
Several factors have a direct impact on the effectiveness of a 3-channel heat management pump:
Channel geometry precision, influencing flow balance and pressure loss
Seal quality, preventing internal leakage between circuits
Motor efficiency and control accuracy, affecting responsiveness and energy use
Coolant compatibility, determining long-term material stability
Thermal expansion control, maintaining tolerances under varying loads
Because all three channels are integrated within a single unit, deviations in one area can affect overall system performance.
Selecting suppliers for multi-channel thermal pumps requires a broader evaluation than single-loop components. Engineering teams often prioritize suppliers that demonstrate:
Experience with multi-circuit thermal systems
Documented validation under representative thermal and hydraulic conditions
Robust material traceability and quality control processes
Capability to support interface customization and system integration
Stable production capacity for long-term programs
Supplier transparency and change management discipline are particularly important for OEMs operating under regulated or safety-critical conditions.
While three-channel designs offer clear advantages, several challenges remain:
Balancing flow across channels under varying load conditions
Air entrapment during system filling and commissioning
Limited diagnostic visibility when one channel underperforms
Packaging constraints in compact system layouts
Addressing these issues typically requires coordinated system-level design, including proper venting strategies, sensor placement, and control logic development.
The 3-channel heat management pump is widely used in systems that require moderate thermal segmentation without excessive complexity. Common applications include:
Electric and hybrid vehicles managing battery, power electronics, and motor cooling
Industrial power converters and variable-frequency drives
Energy storage systems with separate battery and inverter loops
Automation equipment combining motion control and power electronics
Laboratory and test equipment with mixed thermal loads
In these use cases, three-channel architectures provide sufficient thermal flexibility while maintaining manageable cost and integration effort.
Several trends are shaping the evolution of three-channel thermal pumping solutions:
Integration with digital thermal management platforms, enabling predictive control
Increased use of dielectric coolants, supporting direct electronics cooling
Compact, modular designs, simplifying system architecture
Enhanced sensing and diagnostics, improving fault detection
Efficiency-driven optimization, aligned with sustainability goals
As system designers seek to balance performance, cost, and reliability, three-channel solutions are expected to remain a preferred choice for mid-complexity thermal architectures.
How does a three-channel pump compare to single-loop systems?
Three-channel designs enable targeted cooling of multiple subsystems, reducing thermal interference and improving overall efficiency.
Is independent control available for each channel?
Depending on the design, channels may be passively balanced or actively controlled through electronic feedback and variable-speed operation.
What maintenance is typically required?
Maintenance focuses on coolant condition, seal integrity, and electrical connections rather than mechanical wear, as many designs are fully sealed.
As thermal management challenges continue to evolve, segmented cooling strategies have become essential for maintaining performance and reliability. The 3-channel heat management pump represents a practical balance between functional flexibility and system simplicity. By integrating multiple cooling paths within a single, well-engineered unit, it enables precise thermal control across a wide range of industrial applications. For engineers designing next-generation platforms, understanding the capabilities and constraints of three-channel pump architectures is key to building efficient, resilient, and scalable thermal systems.
